Standing Seam vs Corrugated Panel Repair: Different Approaches
When your metal roof starts showing signs of wear, understanding the specific type of panels you have makes all the difference in getting quality repairs. At Houston Building Repair Company, we’ve seen countless property owners confused about whether they have standing seam or corrugated panels—and more importantly, why the repair approach differs so dramatically between the two.
The truth is, these two popular metal roofing systems couldn’t be more different when it comes to maintenance and repair work. While both offer excellent durability and weather resistance, each requires a unique set of skills, tools, and techniques to fix properly. Let’s dive into what makes these systems distinct and why choosing the right repair approach matters for your building’s longevity.
Fundamental Differences Between Panel Types
Before we talk about repairs, it’s essential to recognize what sets these two roofing systems apart. Standing seam panels feature raised seams that run vertically along the roof, with hidden fasteners that aren’t exposed to weather. This concealed fastening system is one of its biggest advantages—but it also complicates repair work.
On the other hand, corrugated panels have those familiar wavy patterns with exposed fasteners driven directly through the metal into the roof deck. These panels are typically more affordable and easier to install initially. However, those exposed fasteners become potential weak points over time, especially in Houston’s harsh climate with intense UV exposure and frequent storms.
The installation method fundamentally changes how we approach standing seam repair projects. Since the fasteners hide beneath the seams, we can’t simply pop off a panel and replace it like we might with corrugated systems. This difference alone can significantly impact repair costs and timelines.
Common Issues With Standing Seam Roofs
Standing seam systems are known for their sleek appearance and superior weather resistance, but they’re not immune to problems. Over the years, our team has identified several recurring issues that affect these sophisticated roofing systems.
Seam separation tops the list of common problems. The interlocking seams can pull apart due to thermal expansion and contraction, particularly in Texas where temperature swings can be dramatic. When this happens, water infiltration becomes a serious concern. Additionally, the clips that hold standing seam panels in place can fail or loosen over time, causing the panels to lift or shift during high winds.
Another issue we frequently encounter involves panel oil canning, which creates visible waves or ripples across the roof surface. While this is often an aesthetic concern rather than a structural one, it can indicate underlying installation problems or stress on the panels that may worsen over time.
Fastener clips can also corrode or break, especially in coastal areas near Houston where salt air accelerates metal deterioration. Furthermore, improper expansion and contraction accommodation during installation can lead to buckling or warping as the metal responds to temperature changes throughout the day and across seasons.
Corrugated Panel Problems and Vulnerabilities
Corrugated panels face a different set of challenges, primarily centered around their exposed fastener system. Those screws with rubber washers that puncture through the metal are the Achilles’ heel of this roofing type.
Fastener deterioration represents the most common issue we see. The rubber washers dry out, crack, and lose their sealing capability under constant sun exposure. Once compromised, these fasteners allow water to seep beneath the panels, leading to rust and potential structural damage to the roof deck below.
Moreover, corrugated panels are more susceptible to wind uplift at the edges and overlaps. During severe weather events—which Houston sees plenty of—these panels can peel back or tear away entirely if fasteners have loosened. The wavy profile also makes corrugated panels more prone to accumulating debris in the valleys, which can trap moisture and accelerate corrosion.
We’ve also noticed that impact damage from hail or falling branches tends to be more visible and problematic on corrugated panels compared to standing seam systems. The thinner gauge metal used in many corrugated applications dents more easily, creating low spots where water can pool.

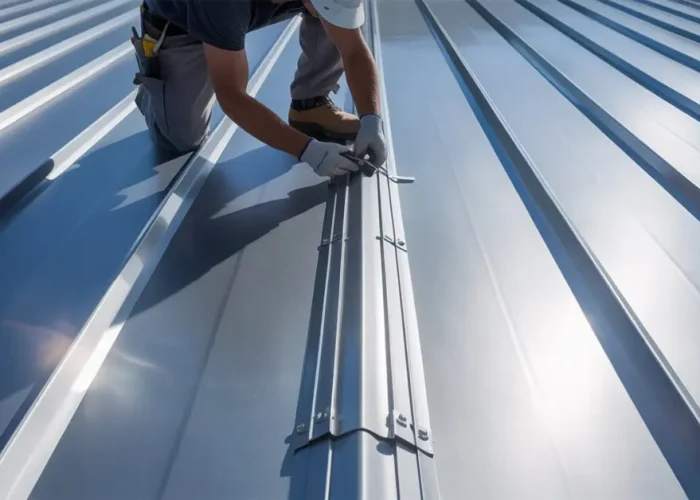

Repair Techniques for Standing Seam Systems
Repairing standing seam roofs requires specialized knowledge and equipment. The concealed fastener system means we can’t simply remove and replace a panel without careful consideration of the interlocking mechanism.
For minor seam separation, we often use high-quality sealants specifically designed for metal roofing. These products must remain flexible to accommodate thermal movement while creating a watertight barrier. However, sealant should be considered a temporary solution in many cases—proper standing seam repair typically involves re-seaming the panels using specialized tools.
When dealing with panel replacement, the process becomes more involved. We need to carefully disengage the interlocking seams on both sides of the damaged panel, which requires hand seamers or mechanical seamers depending on the seam profile. Once the damaged section is removed, we install the new panel and re-seam it to match the existing roof perfectly.
Clip replacement presents its own challenges. Since clips sit beneath the seams, we must unseal and lift the seam to access the failed clip. This delicate work requires patience and expertise to avoid damaging surrounding panels. After replacing the clip, we re-seal the seam using the proper technique to maintain the roof’s weather-tight integrity.
For more extensive damage, sometimes panel sections must be cut out and new pieces spliced in. This approach demands precise measurements and expert metalworking skills to ensure the repair blends seamlessly with the existing roof. The goal is always to maintain the clean lines and weather resistance that make standing seam systems so desirable.
Corrugated Panel Repair Methods
Fixing corrugated panels generally follows a more straightforward approach, though that doesn’t mean the work requires any less attention to detail. The exposed fastener system makes many repairs more accessible, but it also means paying careful attention to proper sealing techniques.
Fastener replacement is the most common repair we perform on corrugated roofs. This involves removing old screws with deteriorated washers and installing new fasteners with fresh neoprene or EPDM washers. The key is driving the screws to the proper torque—too loose and they won’t seal, too tight and you’ll crush the washer or dimple the metal.
When replacing entire panels, the process is relatively simple compared to standing seam systems. We remove the fasteners from the damaged panel, slide it out from under the overlapping panel above, and install the new panel in reverse order. However, matching the panel profile, color, and gauge can be tricky, especially on older buildings where the exact product may no longer be available.
Patch repairs work well for small holes or tears in corrugated panels. We clean the damaged area thoroughly, apply a compatible primer, and secure a metal patch using butyl tape and fasteners. The patch must extend well beyond the damaged area and follow the contours of the corrugations to shed water properly.
For widespread rust or corrosion, sometimes coating the entire roof with an elastomeric or acrylic coating system provides an economical alternative to full replacement. These coatings seal fastener holes, fill small gaps, and provide a fresh protective layer against the elements.
Why Professional Expertise Matters
Both standing seam and corrugated panel systems demand professional attention when repairs are needed. While corrugated repairs might seem like simple DIY projects, improper techniques can void warranties and create more problems than they solve.
Standing seam repair work particularly requires professional expertise because of the specialized tools and knowledge involved. Attempting to repair these systems without proper equipment can damage the interlocking seams beyond repair, potentially requiring extensive panel replacement that could have been avoided.
Additionally, safety concerns make professional service essential. Metal roofs become extremely slippery when wet, and working at height always carries inherent risks. Our team at Houston Building Repair Company has the proper safety equipment, training, and insurance to handle these repairs safely and effectively.
Furthermore, professional contractors understand Houston’s specific climate challenges. We know how thermal expansion affects different metals, which sealants withstand our humidity, and how to prepare for hurricane-force winds that can test any roofing system.
Also Read: How to Repair Warped Metal Panels on Commercial Buildings
Making the Right Repair Decision for Your Building
Choosing between repair and replacement depends on several factors beyond just the type of panel system you have. The age of your roof, extent of damage, and your long-term plans for the property all play important roles in this decision.
Generally speaking, standing seam systems justify repair work more often than corrugated panels because of their higher initial investment and longer expected lifespan. If your standing seam roof is less than 20 years old and damage is localized, repair almost always makes financial sense.
Corrugated panels, being more affordable initially, sometimes make replacement more attractive than extensive repairs—especially if multiple areas show deterioration. However, if your corrugated roof is relatively new and damage is limited to a few panels or fastener problems, repairs are definitely worthwhile.
Weather patterns also influence this decision. If a major storm caused isolated damage but the rest of the roof is in good condition, repair is usually the best choice. However, if you’re addressing ongoing issues that keep recurring, replacement might save money long-term.
Maintaining Your Metal Roof After Repairs
Once repairs are complete, proper maintenance extends the life of both standing seam and corrugated systems significantly. Regular inspections should happen at least twice yearly—once before hurricane season and again afterward.
For standing seam roofs, check the seams carefully for any separation or gaps. Look for any panels that appear to be lifting or shifting. Ensure that all penetrations (vents, pipes, etc.) remain properly sealed and that no debris has accumulated around these areas.
Corrugated roof maintenance focuses heavily on fasteners. Walk the roof (if safely accessible) or use binoculars from the ground to check for missing, loose, or deteriorated fasteners. Look for rust spots developing around fastener holes, which indicate seal failure. Clean out valleys where debris accumulates, as this trapped material holds moisture against the metal.
Both systems benefit from keeping the roof surface clean. Remove leaves, branches, and other organic material that can trap moisture and accelerate corrosion. In Houston’s humid environment, this becomes especially important as mold and mildew can develop quickly on dirty roof surfaces.
Conclusion
Understanding the differences between standing seam and corrugated panel systems helps you make informed decisions when repairs become necessary. While standing seam repair demands specialized techniques and tools, corrugated systems present their own unique challenges that require professional expertise.
At Houston Building Repair Company, we’ve spent years perfecting our approach to both types of metal roofing repairs. We understand that your roof protects your most valuable assets, and we take that responsibility seriously. Whether you’re dealing with seam separation on a standing seam roof or fastener failure on corrugated panels, our team has the knowledge and experience to deliver lasting solutions.
Don’t wait until small problems become major headaches. If you’ve noticed any issues with your metal roof, contact us today for a thorough inspection and honest assessment. We’ll help you determine whether repair or replacement makes the most sense for your situation and budget, ensuring your building stays protected for years to come.
